Model

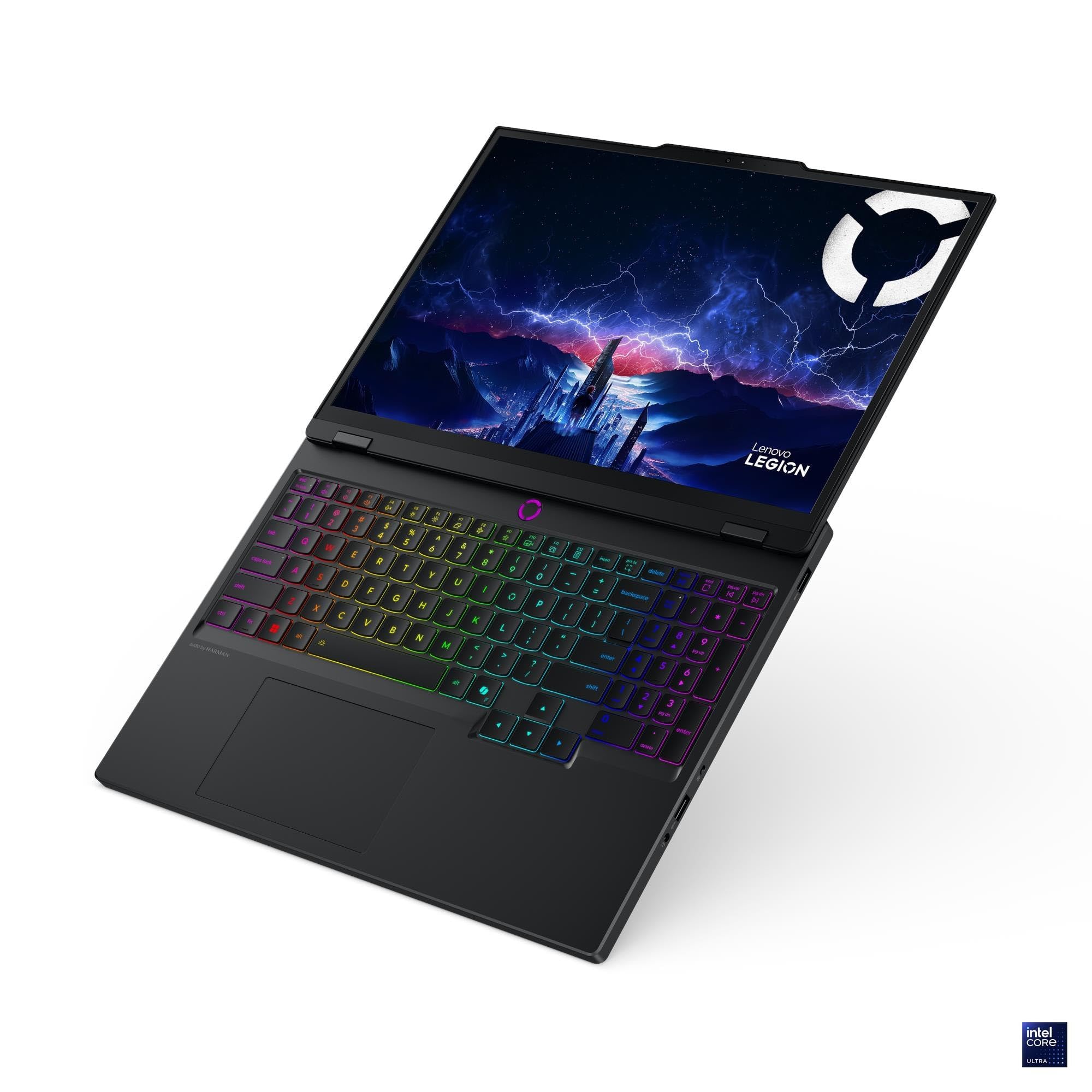

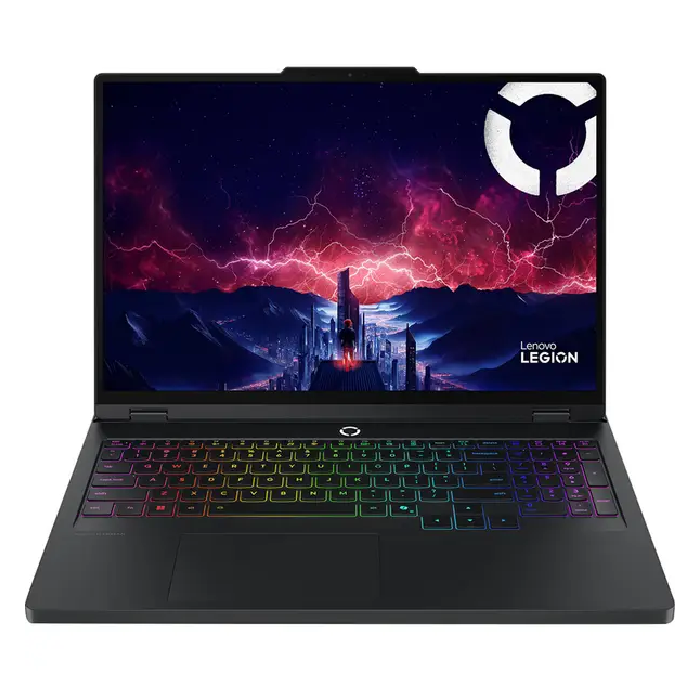

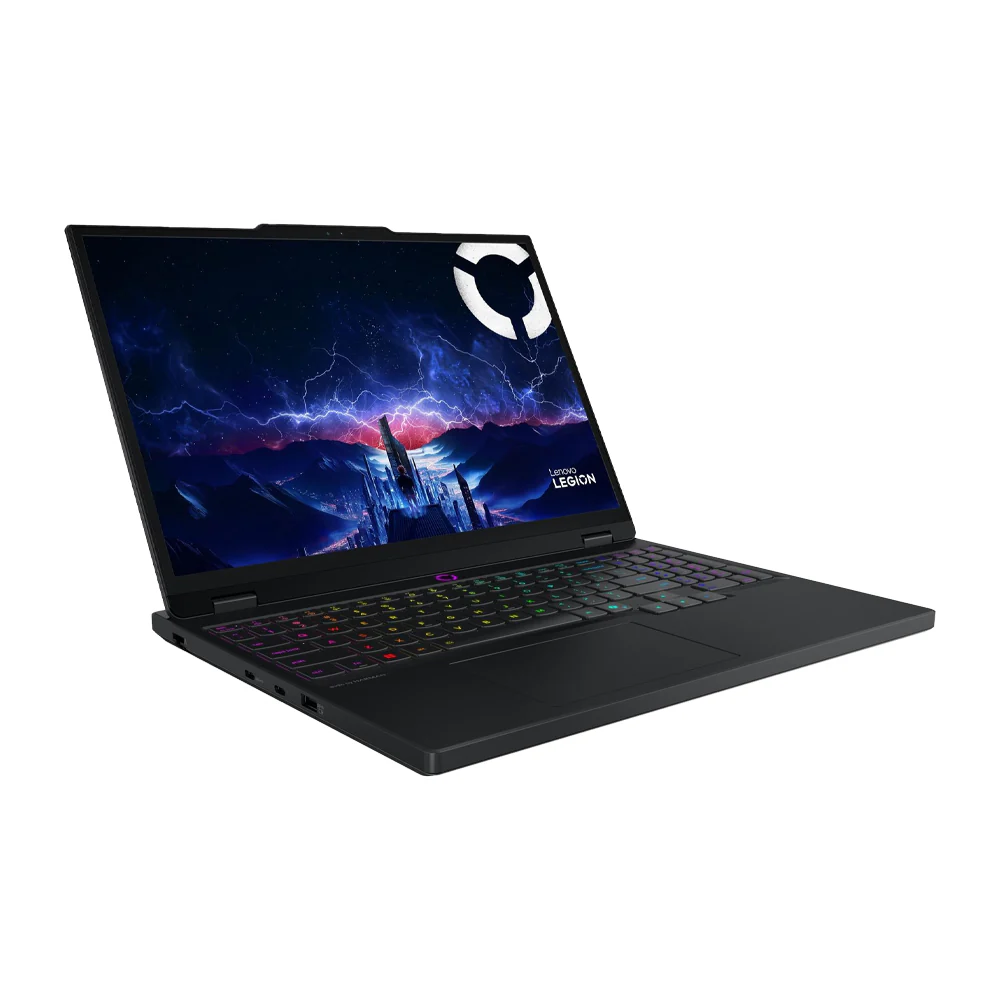

Legion 5 15IRX10 (83LY0000US)

Processor

Intel® Core™ i7-14700HX (20C / 28T, up to 5.5GHz, 33MB Cache)

Memory

16GB DDR5-5600 (1×16GB SO-DIMM)

Memory Slots

2× DDR5 SO-DIMM, dual-channel capable (up to 32GB)

Storage

1TB M.2 2242 PCIe® 4.0×4 NVMe® SSD

Storage Slot

2× M.2 2280 PCIe® 4.0×4 slots (supports up to 2×1TB SSDs)

Graphics Card

NVIDIA GeForce RTX 5060 8GB GDDR7

Graphics Card TGP

115W

Screen Size

15.1″

Resolution

WQXGA (2560×1600)

Panel

OLED, glossy, 1000nits peak / 500nits typical, Dolby Vision®, DisplayHDR™ True Black 600

Colour gamut

100% DCI-P3, Factory Color Calibrated

Refresh Rate

165Hz

Brightness

1000nits (peak) / 500nits (typical)

Touchscreen

No

Keyboard

24-Zone RGB Backlit, English

Battery

80Wh Li-Polymer

Power Adapter

245W Slim Tip (3-pin)

Operating System

Windows 11 Home, English

WLAN + Bluetooth

Wi-Fi 7 (802.11be) 2×2 + Bluetooth 5.4

Dimensions (WxDxH)

344.9 × 255.35 × 19.95–21.54 mm

Weight

1.9 kg

Warranty

1 Year

Color

Eclipse Black

ports

3× USB-A (USB 3.2 Gen 1, one Always On) 2× USB-C (USB 3.2 Gen 2, with PD & DisplayPort support) 1× HDMI® 2.1 (up to 8K/60Hz) 1× RJ-45 Ethernet 1× Headphone/mic combo (3.5mm) 1× Power connector

Speaker

2× 2W Stereo Speakers by HARMAN, Nahimic Audio

Camera

5.0MP with E-shutter

Material

Aluminium (Top), PC-ABS + 15% Talc (Bottom)

Finger print

No
